The Bag Valve Aerosol Valve is a spray system commonly used in aerosol cans, which consists of a bag-like structure and a valve. The main function of the bag valve aerosol valve is to control the pressure in the aerosol can and the flow rate of the sprayed liquid, making the spraying operation more convenient and precise.
Size :
30-650mlPort of delivery :
Shenzhen/Guangzhou ChinaMOQ quantity :
10000Terms of Payment :
FOB/CIF/CFR (If you have the need of other trade term, please contact us to discuss.)Trade Term :
T/T (L/C, D/P, D/A, Paypal, Western Union, etc)Product Description

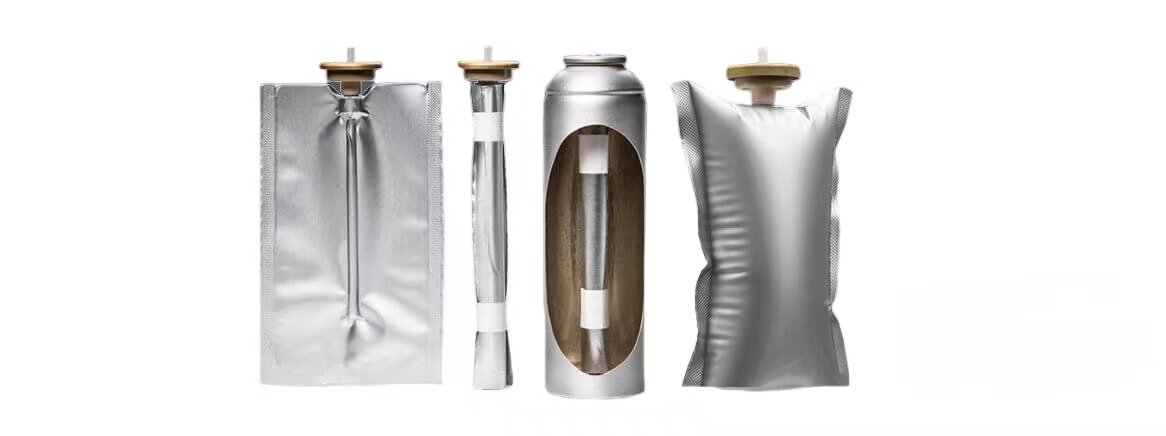

Bag-On-Valve, known as BOV, is also a type of aerosol valve. It is similar to the normal valve but with an extra sealed bag. In other words, it is a barrier packaging technology for liquid or viscous products. By using the Bag on Valve, the active ingredient is completely separated from the propellant in the bag. Thus, the product can be applied in its pure form. In this situation, the complete purity of the recipe is maintained.

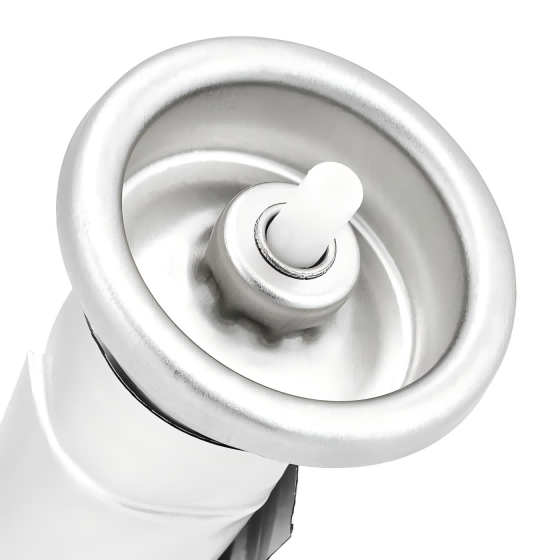

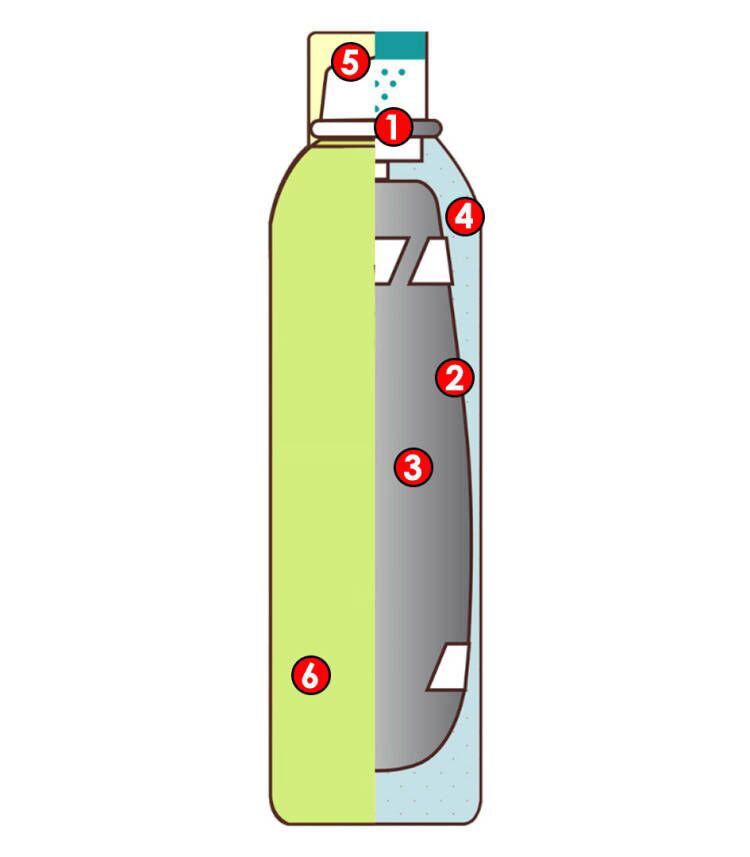

1. Valve: Bag-on-valve (B.O.V.) We are available with both female and male valves. 2. B.O.V.: We can provide a wide range of sizes from 30ml to 650ml. 3. Product: B.O.V. are suitable for liquids and most viscous products like creams and lotions, across a variety of application areas. They are optimized for oxygen-sensitive and sterile products. Note that dry powders are not compatible with B.O.V. systems. 4. Propellant: Air or nitrogen should be used—never liquid gases. 5. Actuator & Cap: large range of standard actuators are available depending on product demands. Standard overcaps can be used with many types of containers and actuators. 6. Aerosol Can: Standard DOT pressure-rated containers made from aluminium and tinplate can be used. A wide variety of shaped containers are compatible. |
Benefits of Bag on Valve PackagingThe unique BOV system is developed to not only produce a superior spray dispensing system, but to reduce our ecological footprint through a sustainable packaging process. Compared to traditional aerosol spray technology (and other alternative packaging) BOV aerosols have several benefits, for manufacturers, consumers as well as the environment. Safety and environmental benefits of BoV aerosols
Consumer benefits of BoV aerosols
Production and distribution benefits of BoV aerosols
|
Size Specification
Item Code | Volume(ml) | Bag size(mm) | Remarks |
BOV-MF/S4.0-Fe/AL-50 | 30-50 | 77*87 |
M=EM6.3 valve F-Female valve S4.0=4.0 valve Fe=Tinplate cup AL=Aluminum cup OEM service isavailable according with your can's size |
BOV-M/F/S4.0-Fe/AL-75 | 50-75 | 77*101 | |
BOV-M/F/S4.0-Fe/AL-100 | 80-100 | 82*128 | |
BOV-M/F/S4.0-Fe/AL-130 | 100-130 | 92*130 | |
BOV-M/F/S4.0-Fe/AL-180 | 160-180 | 105*130 | |
BOV-M/F/S4.0-Fe/AL-200 | 180-200 | 105*140 | |
BOV-M/F/S4.0-Fe/AL-400 | 380-400 | 115*200 | |
BOV-M/F/S4.0-Fe/AL-500 | 480-500 | 125*220 | |
BOV-M/F/S4.0-Fe/AL-600 | 580-600 | 125*245 | |
BOV-M/F/S4.0-Fe/AL-650 | 630-650 | 125*250 |
Application

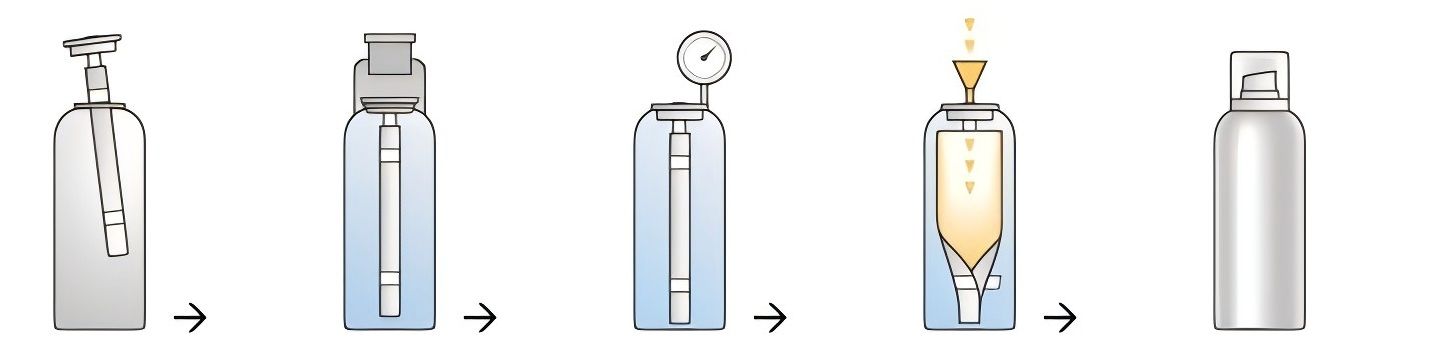

Bag On Valve Filling Process
Placing of valve and bag inside the can ➭Crimping and under cup or through the valve gassing ➭ Pressure control ➭ Product flling in the bag and weight control ➭ Actuator and cap placement.
FAQ
Q1. What’s the MOQ? Can I order less than MOQ?
The MOQ quantity usually is 10000 pcs. If you want the small quantity than the MOQ, please contact us to communicate.
Q2. Can I get a sample to test before place the order?
Yes, any samples less than 10-15 pieces are acceptable, can be ready within 3 working days.
Q3. Is there any guarantee for the quality?
All prodcuts are detected 100% before loading and certificated by ISO9001 quality system.
Q4. What's the packing method?
We usually pack them in cartons.
Q5.What is the lead time if I place an order?
Usually it needs 12-15 days that the production would be completed.
Q6.How can I trust you?
Just contact us, our staff average 5-8 years experience can solve any problem.
